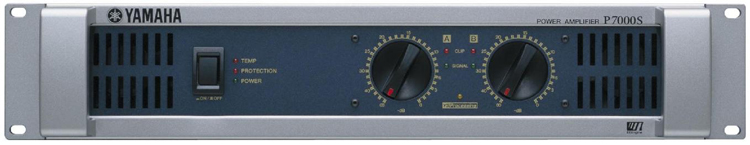

YAMAHA P7000S

Amplificador de Potencia


YAMAHA P7000S





YAMAHA P7000S



$ 25500.-

Robust Power Output, Superior Audio Quality, and Efficient Operation

Yamaha's audio engineers have specifically designed the new P-Series power amplifiers to be perfect companions to the popular Club Series loudspeakers. To achieve this, they made sure that the amplifiers are capable of delivering power that matches the power handling capabilities of the Club Series Speakers, and equipped them with YS Processing (Yamaha Speaker Processing) to deliver a signal that will result in optimum system performance.
Power is plentiful, ranging from 3200 watts from the P7000S to 1300 watts from the P2500S in 4 ohms bridged mode. If you want the perfect power amplifier for pair of Club S115s with a 500-watt program rating, for example, the P5000S with 500-watts per channel into 8 ohms is the obvious choice.
Further matching precision is afforded by Yamaha's proprietary YS Processing circuit. Each P-series amplifier is equipped with this specially designed circuit so that it delivers output tailored to the specific response of the Club Series speakers. All models feature both XLR and 1/4-inch TRS inputs, and Neutrik speakON, phone plug, and 5-way binding post outputs. Other features include Yamaha's exclusive EEEngine technology for high performance with exceptional efficiency, sweepable high and low pass filters for matching output to any loudspeakers, a compact and durable 2U chassis, and variable speed cooling fans.



Big Power with Outstanding Efficiency

The new P-Series Power Amplifiers deliver solid, professional-quality power in a wide range of configurations designed to suit a variety of applications. In 4 ohmas bridged mode the P7000S delivers 3200 watts, the P5000S 2600 watts, the P3500S 2000 watts, and the P2500S 1300 watts.
Those on a budget will find the lineup's high power output and affordable prices offer superior quality without putting a strain on allotted funds. Further savings are realized with extremely efficient operation utilizing Yamaha's exclusive EEEngine technology, which keeps operational costs down by significantly reducing AC power consumption and heat generation.

The Perfect Match for Your Club Speakers

The new P-Series Power Amplifiers can be used with any loudspeaker system, but if you're using our Club Series speakers they will provide optimum power and performance. In an 8Ω stereo application, power output per P7000S channel is 700 watts (650 watts on the 230V model), the P5000S puts out 500 watts per channel, the P3500S delivers 350 watts per channel, and the P2500S outputs 250 watts per channel. This wide selection lets you choose the amplifier that best matches the power handling capabilities of your speaker system.
All four models are equipped with independent sweepable high-pass and low-pass filters on each channel so you can optimize output for subwoofer or full range systems.

Light Weight for Easy Transport and Setup

Look at the specifications and you'll notice that the P2500S and P3500S are surprisingly light in weight, making transport and setup less of a chore. What is really impressive, however, is the difference in weight per watt when you look at the P5000S and P7000S. The use of an advanced switching power supply makes these two models very lightweight while maintaining superior audio quality.

Versatile Connectivity

To provide the most versatile connectivity possible, all four models are equipped with Neutrik speakON* output jacks and 1/4-inch output jacks for each channel, in addition to 5-way binding post. Balanced XLR and 1/4-inch TRS jacks are provided for channel input





General specifications

Model P7000S P5000S P3500S P2500S
Dynamic power; 1kHz; 20ms nonclip 2ohms; Stereo 1600Wx2 1300Wx2 1000Wx2 650Wx2
4ohms; Bridge 3200W 2600W 2000W 1300W
Output power; 1kHz 4ohms; Stereo 1100Wx2 750Wx2 590Wx2 390Wx2
8ohms; Stereo
*:230V model
750Wx2
650Wx2*
525Wx2 390Wx2 275Wx2
8ohms; Bridge 2200W 1500W 1180W 780W
Output power; 20Hz-20kHz 4ohms; Stereo 950Wx2 700Wx2 450Wx2 310Wx2
8ohms; Stereo 700Wx2 500Wx2 350Wx2 250Wx2
8ohms; Bridge 1900W 1400W 900W 620W

P7000S P5000S P3500S P2500S
Power bandwidth 10Hz-40kHz
Total harmonic distortion Less than 0.1% (20Hz-20kHz; Halfpower)
Inter moduration distortion Less than 0.1% (60Hz:7kHz=4:1, Half Power)
Frequency response 0, +0.5, -1dB; 20Hz-50kHz
S/N ratio More than 104dB More than 103dB More than 102dB More than 100dB
Residual output noise
(DIN AUDIO)
Less than -70dBu
Crosstalk Less than -70dB
Damping factor More than 350 More than 200
Maximum input level +22dBu
Maximum voltage gain 32.1dB
Input sensitivity
@8ohms
+7.4dB +6.5dB +5.2dB +3.6dB
Processors HPF/LPF (25Hz-150 sweepable, 12dB/Oct), YS Processing
I/O connectors Line input / output ports XLR3-31 type /ch(balance)
TRS Phone /ch(unbalance)
Speaker output ports speakON /ch
5-way binding post /ch
Phone jack /ch(unbalance)
Protection circuit Load protection POWER switch ON/OFF mute; DC-fault (power supply shutdown) POWER switch ON/OFF mute; DC detection
Amplifier protection Temp. detection (Heat sink temp ≥90°C), VI limiter (RL≤1ohm)
Amplifier class EEEngine
Cooling Dual variable-speed fan Single variable-speed fan
Power requirements AC120V, 230V or 240V 50/60Hz
Power consumption Music source equivalent 650W 500W 450W 320W
Idling 35W 35W 30W 25W
Dimensions Width 480mm; 18-7/8"
Height 88mm; 3-7/16"
Depth 456mm; 17-15/16"
Net weight 12kg; 26.5lbs 12kg; 26.5lbs 15kg; 33.1lbs 14kg; 30.9lbs
