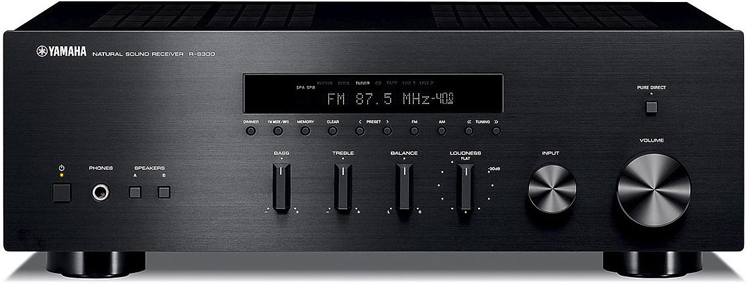

YAMAHA R-S300
Stereo Receiver AM/FM 100 Watts
$ .-
- 50W x 2 (RMS), 85W x 2 (Max) high power output
- ART base chassis to minimize noise and vibration
- Pure Direct for short and direct signal path
- Aluminum-extruded front panel
- Continuous Variable Loudness Control
- iPhone/iPod/Bluetooth® compatibility
- Subwoofer out
- Speaker A, B or A+B selection
- 40-station FM/AM preset tuning
Specifications
Standby Power Consumption |
0.5 W |
|
|---|---|---|
Power Management (Auto Power Off) |
Yes (4/6/12 hours) |
|
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) |
50 W + 50 W (0.04% THD) |
|
Maximum Effective Power(8 ohms, 1 kHz, 10% THD) |
85 W + 85 W |
|
Pure Direct |
Yes |
|
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) |
0.015% (25 W/ 8ohms) |
|
High Dynamic Power/Channel (8/6/4/2 ohms) |
70/77/89/100 W |
|
Signal-to-Noise Ratio (CD) |
100 dB (Pure Direct On, 200 mV) |
|
Frequency Response |
10 Hz-100 kHz ±1 dB |
|
FM Signal-to-Noise Ratio (Mono/Stereo) |
74 dB / 70 dB |
|
Dimensions (W x H x D) |
435 x 151 x 387 mm |
|
Weight |
8.8 kg |
|
Audio In / Out |
5 / 2 |
|
Subwoofer Out |
Yes |
|
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) |
3 µV (20.8 dBf) |
|
 |
 |
 |
 |
 |
 |
