A design combining superior operability and beauty. And introducing a new technology, Twisted Flare Port, for clear and tight bass. A subwoofer that will match a wide range of speakers and interiors.

• PWM digital drive high efficiency amplifier and dual feedback circuit
• New Twisted Flare Port contributes to clear and tight bass
• Subwoofer Activo, Diseño de Dispersión de Disparo Frontal
• 20 cm (8”) cone woofer

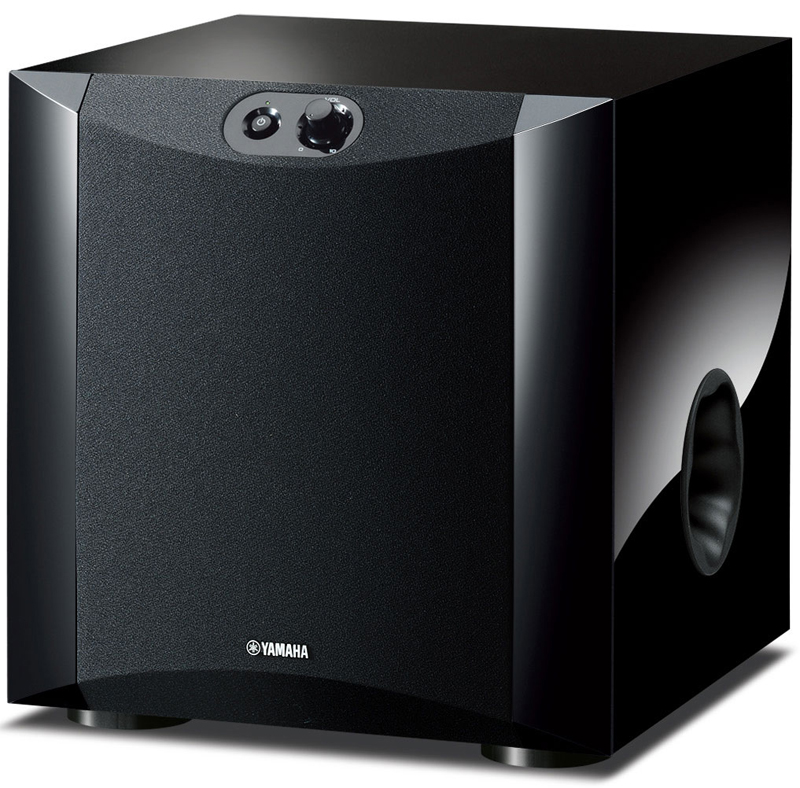

• Beautiful design will match a wide range of speakers and interiors

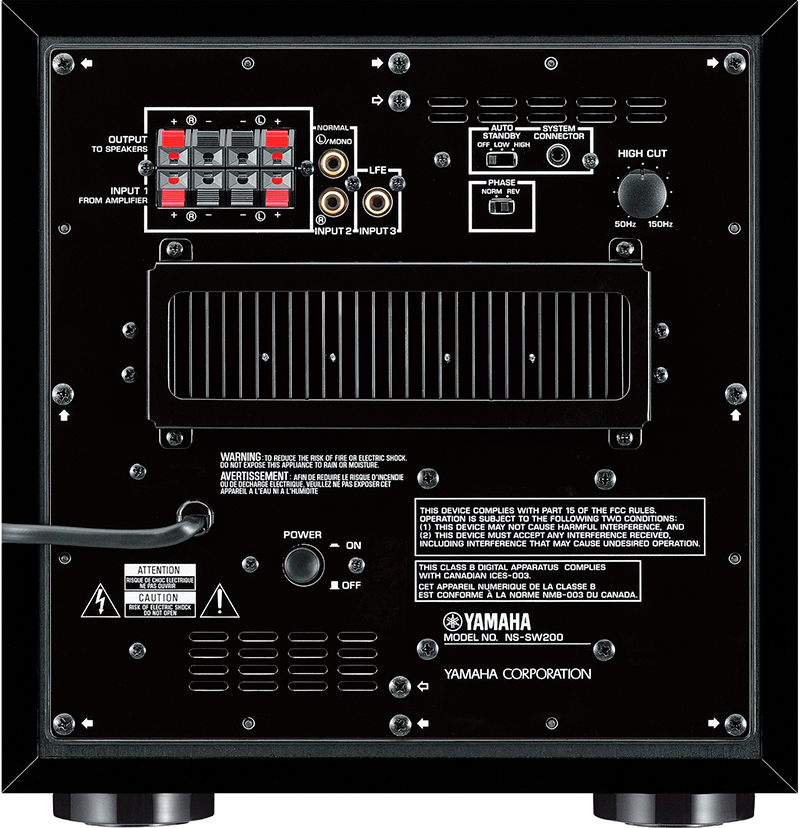

• Front control panel for easy control
• System control and Auto standby



Advanced YST II for Awesome Deep Bass
Developed by Yamaha, the Advanced YST II (Yamaha Active Servo Technology II) combines negative-impedance and constant-current principles to drive the speaker cone with even tighter control than the previous version. Using Advanced Negative Impedance Converter (ANIC) circuits, this system dynamically optimizes effective speaker impedance to maintain excellent linearity. This means more stable and accurate low range response, not to mention higher sound quality.

System Control and Auto Standby
The system control terminal can be linked to the amplifier power to automatically turn the power on and off. There is also an Auto Standby Function: If no signal is input from the amplifier for a fixed period, it automatically switches to the standby state, and when a signal from the amplifier is detected, power turns on automatically. This limits the wasteful consumption of electricity.



CARACTERISTICAS
• Rango de Frecuencia:	28Hz - 200Hz
• Potencia Dinamica:	130W
• Woofer:	8"
DIMENSIONES
•Altura (mm):	290
•Ancho (mm):	306
• Profundidad (mm):	351
• Peso (Kg):	11,2
