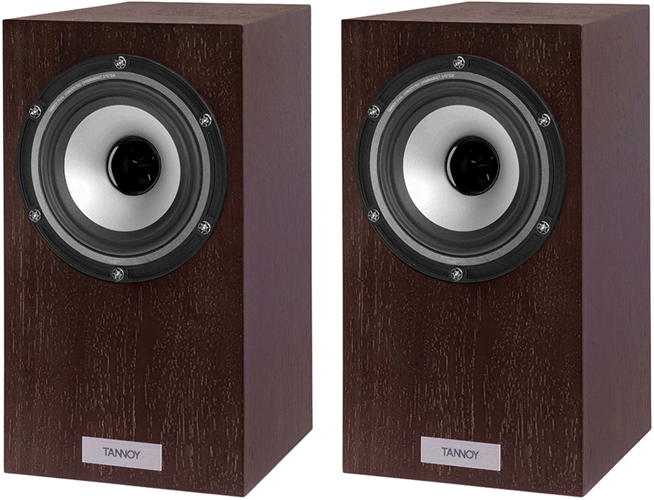

The smallest driver in this Omnimagnet series mates a 20 mm (0.79 inch) Linear PEI dome HF unit and Torus-Ogive waveguide with a 100 mm (4 inch) multi-fibre mid/LF cone. The result is a loudspeaker capable of delivering outstanding imaging and class-leading musical articulation in the smallest listening environment.

Forgoing the Revolution XT series’ plinth to keep dimensions compact, the XT Mini cabinet continues with the trapezoid shape to reduce colouration and further improve accuracy and detailing. The rear ported design is tuned to deliver bass punch down to below 70 Hz, ensuring these compact mini-monitors deliver the full spectrum of music. The XT Mini specific crossover benefits from low loss laminated core inductors and audiophile components to further enhance micro detailing across the audio spectrum.



• Potencia:	25 - 100W
• Sensibilidad:	88dB
• Impedancia:	8 Ohm
• Frecuencia:	68 Hz - 32 Khz
• Anchura (mm):	152
• Altura (mm):	272
• Profundidad (mm):	200
