PROFESSIONAL PROJECTS

For project studios and stage

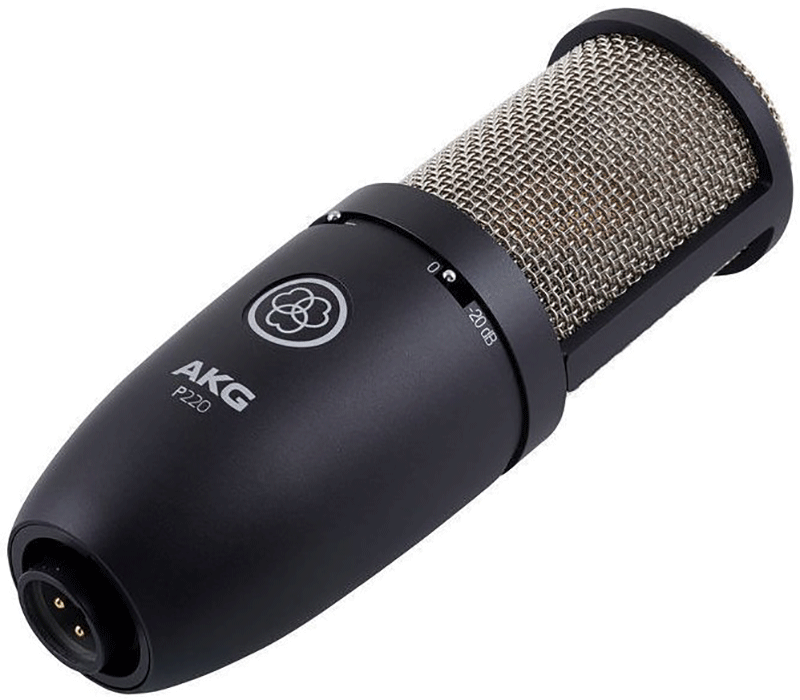

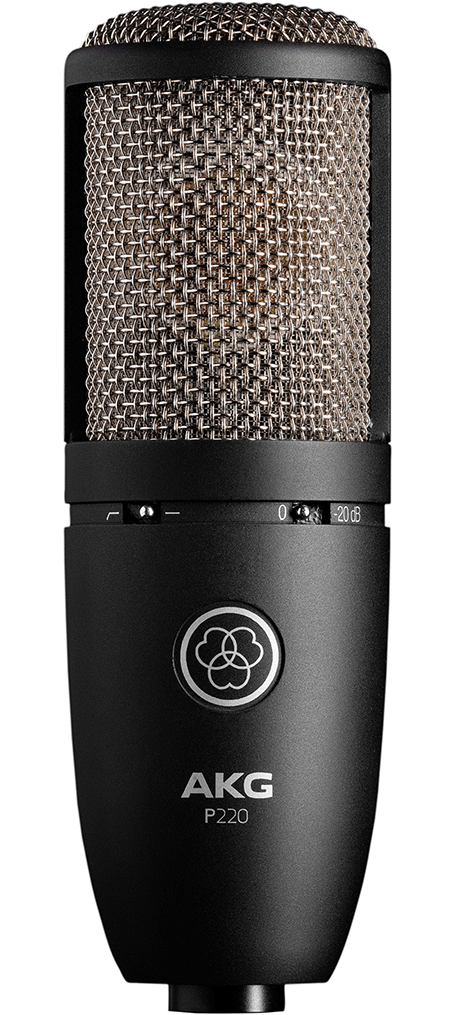

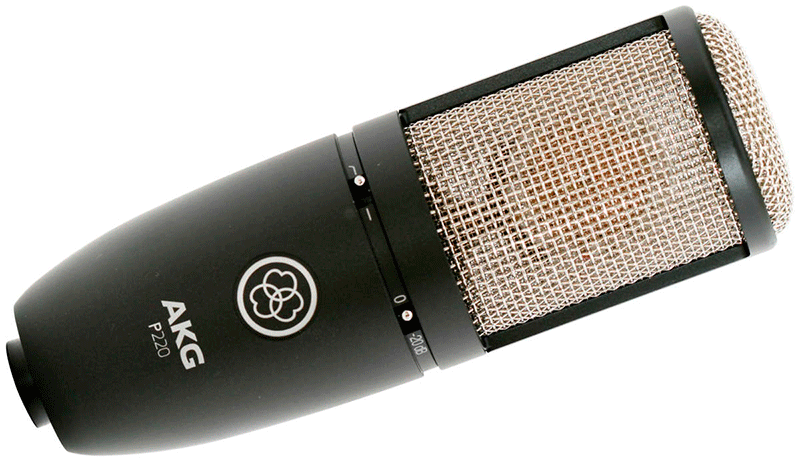

The P220 is a large-diaphragm true condenser microphone offering a warm and clear sound for lead vocals, acoustic guitar and brass instruments. A switchable bass-cut filter and attenuation pad make it perfectly suited for use on loud sound sources with sound pressure levels up to 155dB SPL. The rugged and roadworthy design also makes the P220 a perfect choice for on-stage applications.

The P220 represents the most popular and successful microphone within the actual Project Studio Line. It comes complete with a spider-type shock mount in an aluminum carrying case.

Rugged all-metal body and robust design
withstands tough day-to-day use

Switchable bass-cut filter
eliminates rumble or footfall noise

Switchable attenuation pad
for high SPL applications up to 155 dB SPL

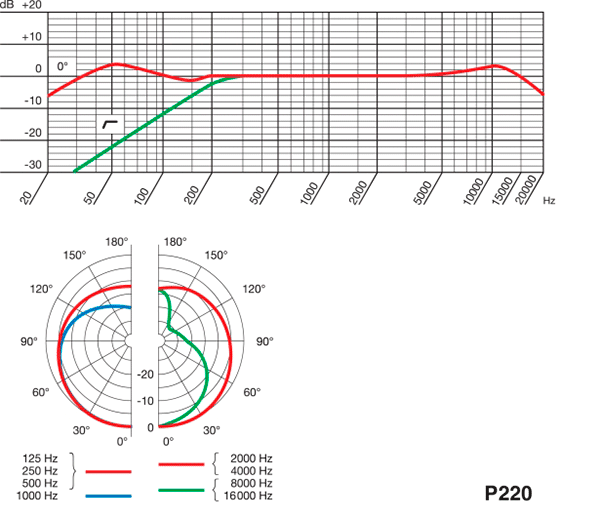

Polar Patterns

AKG P220

TECHNICAL SPECIFICATION

General

Audio frequency bandwidth	20 to 20000 Hz
Equivalent noise level	16 dB-A
Sensitivity	20 mV/Pa
Signal to Noise	78 dB-A
Preattenuation Pad	-20 dB
Bass cut filter	300 - 12 dB/octave Hz
Electrical impedance	<= 200 Ohms
Recommended load impedance	>= 1000 Ohms

Powering Interface

Voltage	44 to 52 V
Current	<= 3 mA

Audio Output

Type	Balanced XLR
Gender	Male
Contacts	3-pin

Dimensions / Weight

Length	165 mm
Diameter	54 mm
Net Weight	530 g
