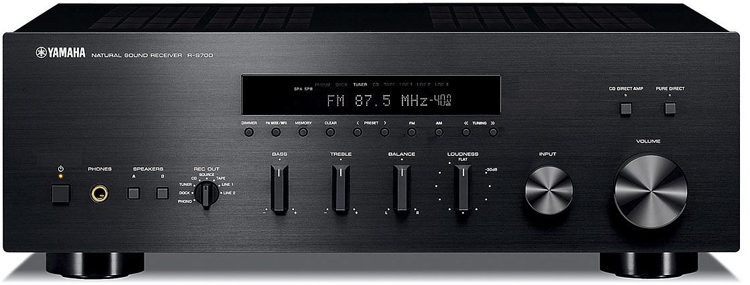

YAMAHA R-S700

Stereo Receiver AM/FM 200 Watts



YAMAHA RS700





YAMAHA RS700





YAMAHA RS700





$ 19800.-

  • 100W x 2 (RMS), 145W x 2 (Max) high power output
  • CD Direct Amplification
  • Pure Direct for short and direct signal path
  • iPhone/iPod/Bluetooth® compatibility
  • iPod video out allows connection to a TV
  • Gold-plated speaker terminals
  • Dual aluminum-extruded heat sinks
  • Continuous Variable Loudness Control
  • Rec Out selector
  • Subwoofer out
  • Speaker A, B or A+B selection
  • Terminal for detachable AC cable



Specifications

Standby Power Consumption
0.5 W
Power Management (Auto Power Off)
Yes (4/6/12 hours)
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)
100W + 100W (0.019% THD)
Maximum Effective Power(8 ohms, 1 kHz, 10% THD)
145 W + 145 W
Pure Direct
Yes
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)
0.015% (50 W/8 ohms)
High Dynamic Power/Channel (8/6/4/2 ohms)
140/170/220/290 W
Signal-to-Noise Ratio (CD)
107 dB (CD Direct on, 200 mV)
Frequency Response
10 Hz-100 kHz ±1 dB (Main In)
FM Signal-to-Noise Ratio (Mono/Stereo)
74 dB / 70 dB
Dimensions (W x H x D)
435 x 151 x 387 mm
Weight
11.2 kg
Audio In / Out
6 / 2
Subwoofer Out
Yes
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono)
3 µV (20.8 dBf)
