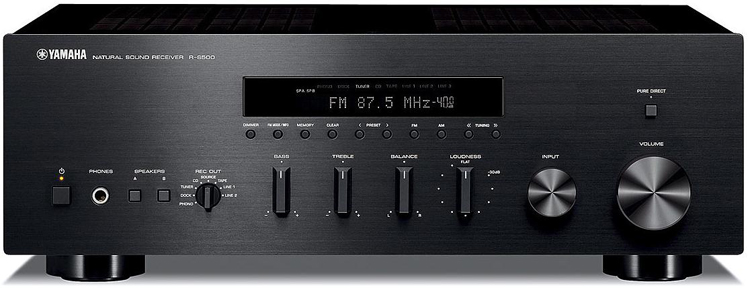

YAMAHA R-S500

Stereo Receiver AM/FM 150 Watts


YAMAHA RS500





YAMAHA RS500





YAMAHA RS500





$ 16500.-

  • 75W x 2 (RMS), 115W x 2 (Max) high power output
  • Pure Direct for short and direct signal path
  • Continuous Variable Loudness Control
  • iPhone/iPod/Bluetooth® compatibility
  • Subwoofer out
  • Speaker A, B or A+B selection
  • Rec Out selector
  • 40-station FM/AM preset tuning



Specifications

Standby Power Consumption
0.5 W
Power Management (Auto Power Off)
Yes (4/6/12 hours)
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)
75 W + 75 W (0.04% THD)
Maximum Effective Power(8 ohms, 1 kHz, 10% THD)
115 W + 115 W
Pure Direct
Yes
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)
0.015% (37.5 W/8 ohms)
High Dynamic Power/Channel (8/6/4/2 ohms)
105/125/150/178 W
Signal-to-Noise Ratio (CD)
100 dB (Pure Direct On, 200 mV)
Frequency Response
10 Hz-100 kHz ±1 dB
FM Signal-to-Noise Ratio (Mono/Stereo)
74 dB / 70 dB
Dimensions (W x H x D)
435 x 151 x 387 mm
Weight
10.2 kg
Audio In / Out
6 / 2
Subwoofer Out
Yes
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono)
3 µV (20.8 dBf)
