PARADIGM

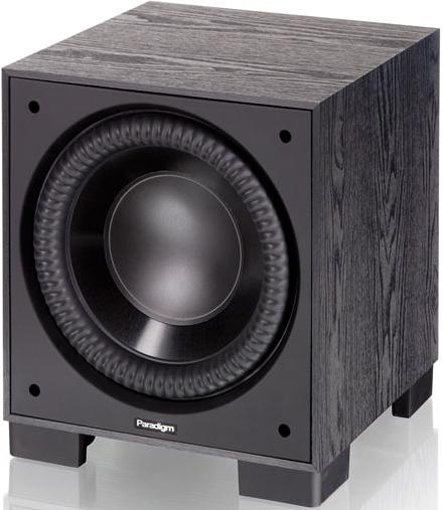

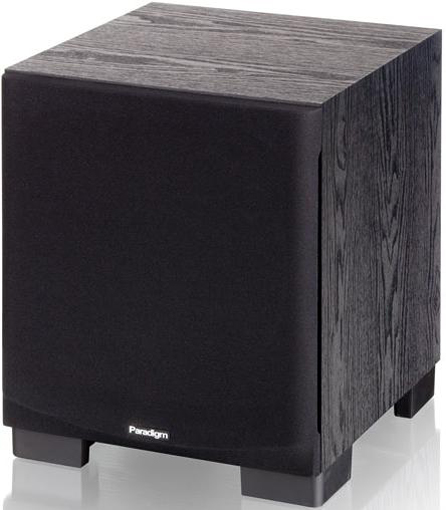

Paradigm Monitor Sub 10
Single Driver, Acoustic Suspension, USB Port for PBK Equalization



PARADIM MONITOR SUB 10





PARADIM MONITOR SUB 10






$ 29600.-



Monitor Subwoofers

  • A compact footprint without compromising bass output or bass extension.
  • Trickle-down Paradigm Reference technology … despite cone size, the NLC™ non-limiting corrugated Santoprene® surrounds help cones move huge volumes of air for bass so loud and so deep it will send the cat running for cover.
  • State-of-the-art room-tuning technology. Don’t worry about perfect placement, put the sub where it looks best and let Paradigm’s Perfect Bass Kit™ (sold separately) dial in perfect bass.
  • Go wireless! Paradigm’s PT-2 transmitter (sold separately) can be used with up to four Monitor subwoofers simultaneously.
  • The clean, modern aesthetic matches the new Monitor Series 7 speakers.
  • Monitor Series 7 subs were designed, engineered and manufactured in our state-of-the-art Toronto, Canada facility.

Input Facilities:

  • Line-level Inputs

Control Facilities:

  • Auto On/Standby
  • Subwoofer Level
  • Subwoofer Cut-Off Frequency (continuously variable 50 Hz – 150 Hz); Bypass Option
  • Sub/Sat Phase Alignment (continuously variable 0° to 180°)



Especificaciones

Design
Single driver, acoustic suspension, built-in
advanced Ultra-Class-D™ amplifier, USB
port for PBK equalization, removable grille
Amplifier High-Current
Discrete Output
900 watts Dynamic Peak;
300 watts RMS Sustained
Amplifier Features
Auto-on/off, soft clipping, thermal protection
Bass Driver
254-mm (10 in) carbon-loaded polypropylene cone,
NLC™ non-limiting corrugated Santoprene® surround,
38-mm (1-1/2 in) 4-layer copper-clad aluminum voice coil.
Nomex® spider, 4.5 lb ferrite magnet,
AVS™ die-cast heatsink chassis
Low-Frequency Extension*
17 Hz (DIN)
Subwoofer Cut-Off Frequency
Variable 50 Hz – 150 Hz;
bypass option
Sub / Sat Phase Switch
Variable 0° or 180°
Line-Level Input
Two RCA (L/R-Mono) for L/R lineout
or Sub-Out/LFE-Out of receiver/processor
or other line-level source
Height, Width, Depth
(gloss side up, height is with feet)
33.0 cm x 28.3 cm x 32.4 cm;
13 in x 11-1/8 in x 12-3/4 in

Weight (unpacked)

10.9 kg / 24 lb
Accessories (sold separately)

PT-2 Wireless Transmitter;
Perfect Bass Kit (PBK)
