Creating a new benchmark in architectural audio excellence, the installer-friendly Klipsch R-5800-W in-wall loudspeaker delivers a level of realism and subtlety that surpasses and even intimidates competing designs. In fact, it snared a CES Innovations Award for being one of the best designed and engineered audio products for 2005.

• Very high sensitivity and power handling
• Pivoting Tractrix Horn compression driver tweeter for clear sound in
• any location
• Treble and midbass attenuation switches and IR receiver knock out

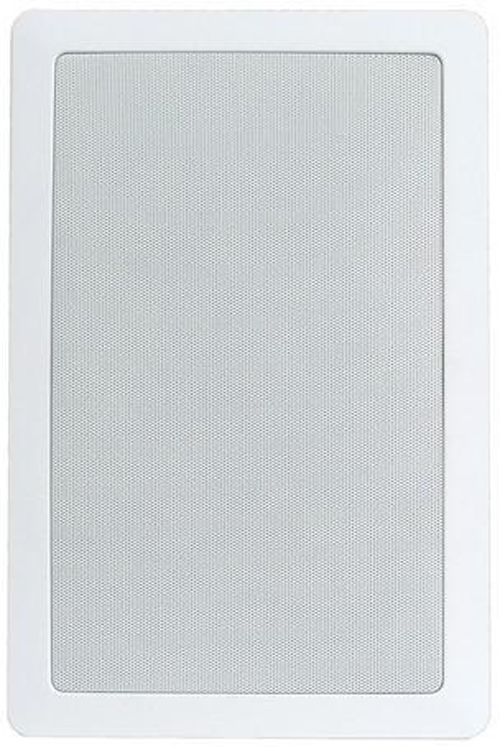

• Single piece grille frame and rustproof aluminum grille

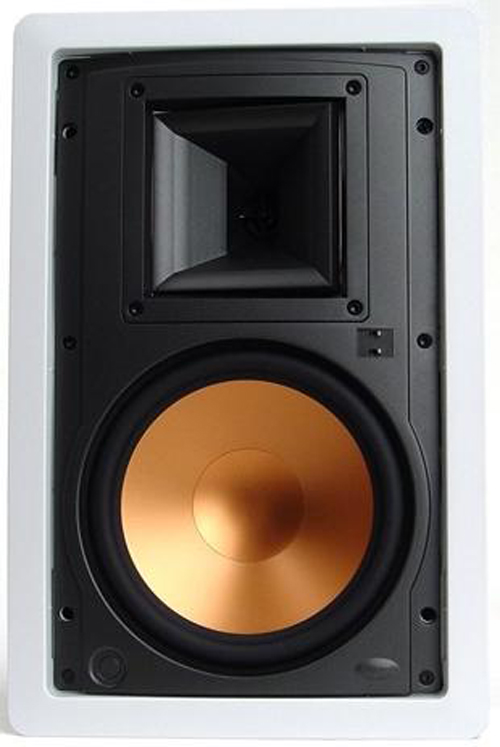

By featuring an 8-inch Cerametallic™ woofer cone, a 1-inch titanium tweeter mated to a square 90-degree by 60-degree pivoting Tractrix® Horn, as well as treble and bass contour switches, there's no denying this speaker's natural precision, clarity and efficiency. Not to mention, because the pivoting horn allows listeners to point the sound where they want it to go, the direct to reflected energy ratio is high in the listening area creating a large soundstage with well-defined imaging.

Available in a white finish, the R-5800-W can be paired with the Klipsch IK-800-W installation kit (sold separately). This revolutionary kit design incorporates a mud ring, breakaway wire tie and color-coded brackets for easy speaker size identification. It also includes perforated metal wings that easily fasten to the studs via screws, staples or nails. Painted white for easy marking and placement, these metal wings can be folded around the edge of the studs if necessary.



Specifications

FREQUENCY RESPONSE	40Hz-20kHz ± 3dB
POWER HANDLING	50 w max continuous (200 w peak)
recommended amplifier power	100W
SENSITIVITY	94dB @ 1 watt/1 meter
NOMINAL IMPEDANCE	8 ohms
CROSSOVER FREQUENCY	2600Hz
TWEETER	1" (2.54cm) Titanium dome compression driver
WOOFER	8" (20.32cm) Cerametallic™ cone
ENCLOSURE MATERIAL	ABS
ENCLOSURE TYPE	Infinite baffle, front flush with wall
WIRE GAUGE ACCOMMODATED	12 Gauge
DIMENSIONS	16.1" (40.89cm) x 10.6" (26.92cm)
MOUNTING DEPTH	3.75" (9.5cm)
CUTOUT DIMENSIONS	14.75" (37.47cm) x 9.25" (23.50cm)
INSTALLATION KIT	IK-800-W
WEIGHT	7.9 lbs. (3.6 kg)
FINISHES	White
