JBL CONTROL 2
2-Way, 4 " Powered Monitor Speakers

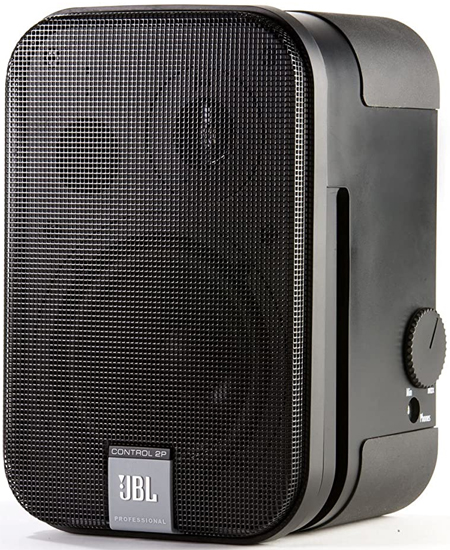

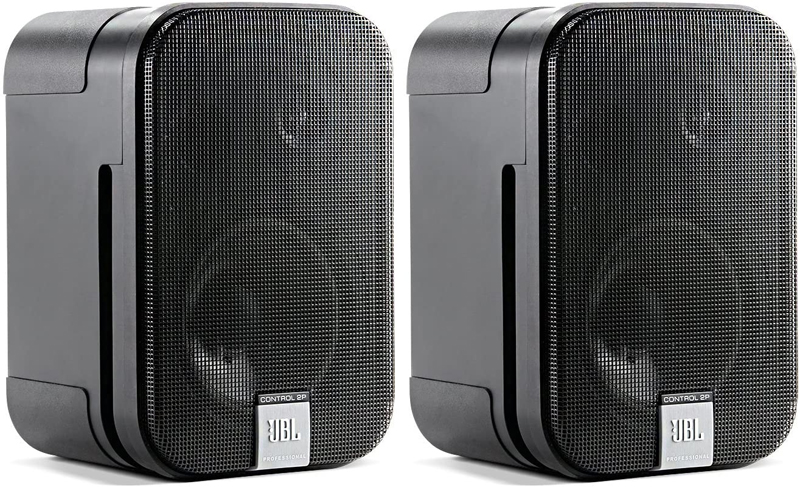

JBL CONTROL 2P





JBL CONTROL 2P



$ .-

Studio quality transducers for accuracy, and rich bass
response: 80 Hz - 20 Khz

35 watt per-channel power amplifier and high sensitivity drivers produce exceptional output: 115 DB max SPL per pair

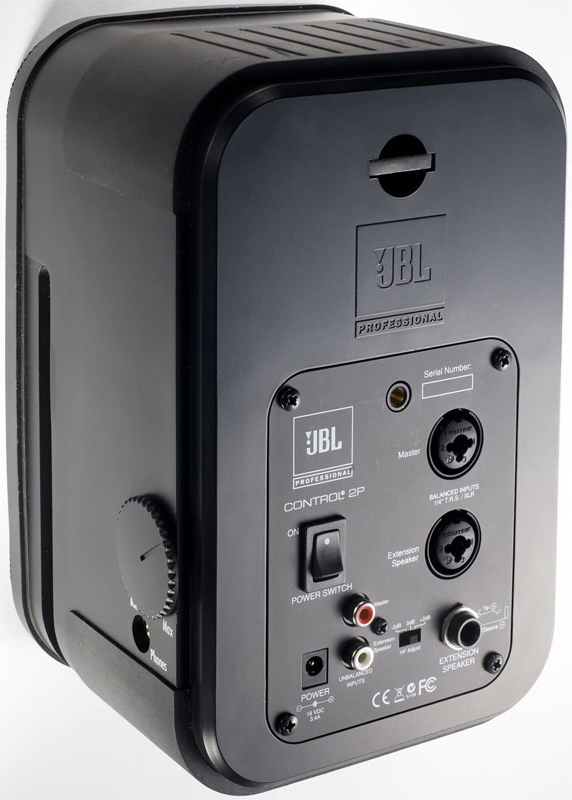

Balanced XLR, ¼”, and unbalanced RCA inputs allow connection to a range of signal sources

Stereo headphone jack allows monitoring using headphones

Ergonomic, side-mounted volume control -
simultaneously controls left and right speakers

High frequency adjust control - allows the user to contour HF response to application requirements

Magnetically-shielded transducers for use near CRT monitors and magnetically sensitive equipment

Internal peak limiter and overload protection circuit - protects the system from damage caused by continuous over-driving

Wall-mount capable using optional MTC-2P mounting kit

Included snap-on pedestals optimize listening angle
for desktop applications



Specifications

Transducers   :   LF: 135 mm (5.25 in) low frequency loudspeaker
HF: 19 mm (.75 in) Polycarbonate dome tweeter

Frequency Range   :   80 Hz - 20 kHz

Amplifier Power   :   35 Watts per channel

Maximum SPL Per Pair   :   115 dB

Crossover Frequency   :   4.2 kHz

Input Sensitivity   :   +4 dBu XLR 1/4"; 0 dBu RCA

Signal Input Connectors (x2)   :   Balanced Neutrik®* Combo XLR 1/4" TRS; Unbalanced RCA

Power Requirements   :   19 VDC / 3.42 A - use only supplied power supply

Headphone Jack   :   3.5 mm (1/8")

Dimensions   :   235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in)

Net Weight   :   4.8 kg (10 lb)
