DALI SUB E-12 F
Powered Subwoofer 12¨





DALI SUB E-12 F





DALI SUB E-12 F





DALI SUB E-12 F





DALI SUB E-12 F





$ 23900.-

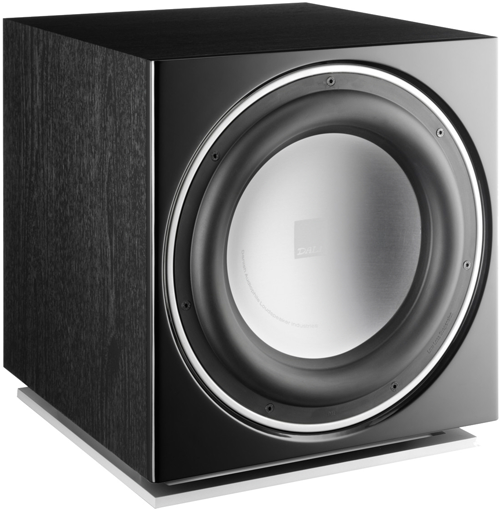

The launch of the DALI SUB E-12 F marks a new stage of what is possible at this level of subwoofers.

The new subwoofer from DALI features a 12” woofer, capable of moving plenty of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil.
All in all, the heavy-duty abilities of this “motor system” ensure that the woofer always follows the signal from the amplifier!

The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.

The back plate of SUB E-12F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.

SUB E-12F is elevated from the floor by an aluminium base, while a down-firing bass port allows positioning directly against the wall. The front grille is mounted by magnets only – and when removed, the visual appearance changes from discreet to extravagant as the pure aluminium cone is revealed.

The DALI SUB-12F is recommended as compliment to the new ZENSOR series and is compatible with all DALI loudspeakers as the perfect completion of a DALI surround set up.



Especificaciones

Product Series
SUBWOOFERS
Speaker Type
Subwoofer
Frequency Range (+/-3 dB) [Hz]
28 - 190
Maximum SPL [dB]
112
Crossover Frequency [Hz]
40 - 120 Hz
Low Frequency Driver
1 x 12" long stroke  Polymere Aluminimum
Enclosure Type
Bass Reflex
Bass Reflex Tuning Frequency [Hz]
36.0
Max. Amplifier Power Output [RMS watt]
220
Continous IEC Power Output [RMS watt]
170
Input Impedance [Ω]
25
Connection input(s)
Mono line level (LFE)
Stereo line level (low pass filtered)
RCA
Magnetic Shielding
No
Recommended Placement
Floor in the corner
Recommended Distance From Wall [cm]
5 <
Functions
Crossover Frequency
Phase Switch
Maximum Power Consumption [W]
250
Max. Dimensions Incl. Base And Grille (HxWxD) [mm]
370 x 340 x 380
Weight [kg]
14.7
