NO MORE CABLES

for houses of worship, hotels, clubs and band applications

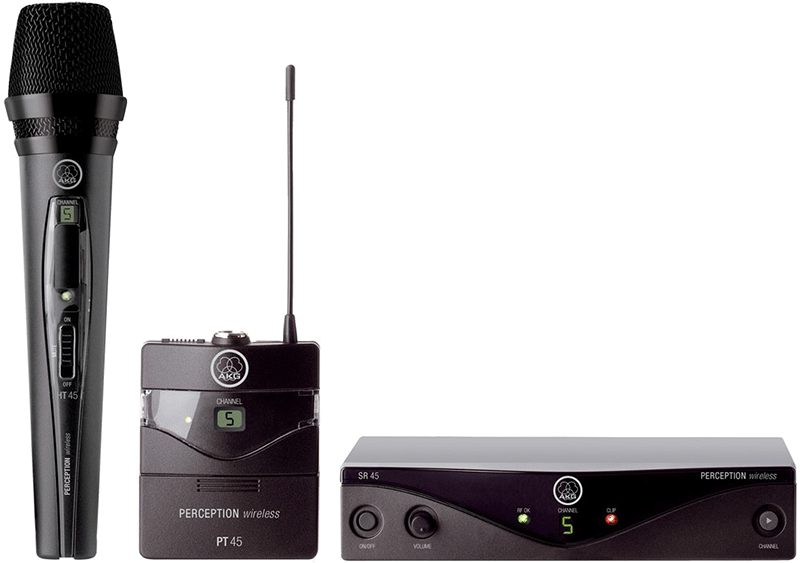

Perception Wireless is a high-performance analog wireless microphone system, which delivers brilliant sound and is easy to use. It is the optimum plug and play wireless solution for small stages, clubs, places of worship, hotels, and gyms. The preset frequency sets allow easy setup from single-channel applications to multichannel systems.

Perception Wireless offers exceptional eight hours of operation from a single AA size battery, which dramatically reduces the operating costs in day-to-day use. The system is available in complete set packages for different applications. All include a universal connector kit for worldwide use.

30MHz selection bandwidth
save operation for simple multichannel systems

Eight hours of operation from a single AA size battery
saves money in day-to-day use

Auto Setup Mode
plug and play solution for easy setup

Switched mode power supply
universal connector kit for worldwide use

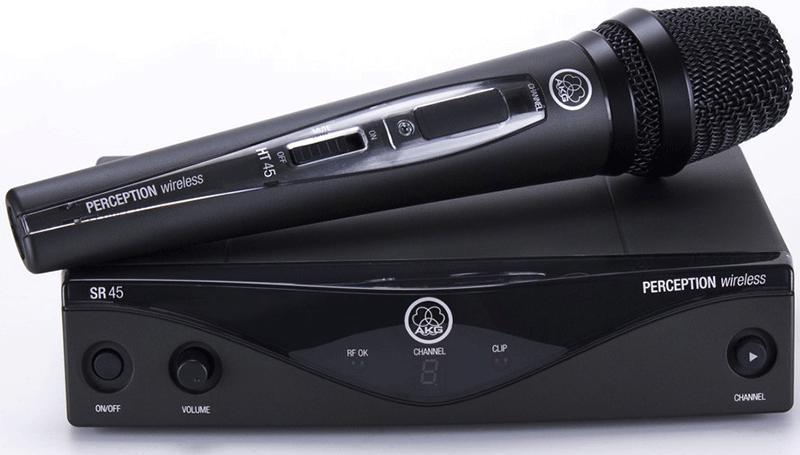

SR45

HIGH-PERFOMANCE WIRELESS STATIONARY RECEIVER

The SR45 analog high-performance space diversity wireless receiver provides maximum ease of use with different channel presets up to eight channels. It is perfect for instrumental and vocal performances in small clubs as well as for use in houses of worship and in conference rooms.

The SR45 provides an audio clipping and RF signal LED for easy monitoring of systems status. Best audio signal output is provided via both a professional XLR and a 1/4" jack connector. For worldwide use, the receiver comes with a universal, switched mode power supply kit.

30MHz selection bandwidth
simultaneous use of up to 6 channels

Professional balanced XLR and ¼" jack output
for best audio signal

Audio clip and RF control LED on receiver
for easy monitoring of your performance

Switched mode power supply
universal connector kit for worldwide use

Adjustable squelch level
for secure audio transmission in all environments

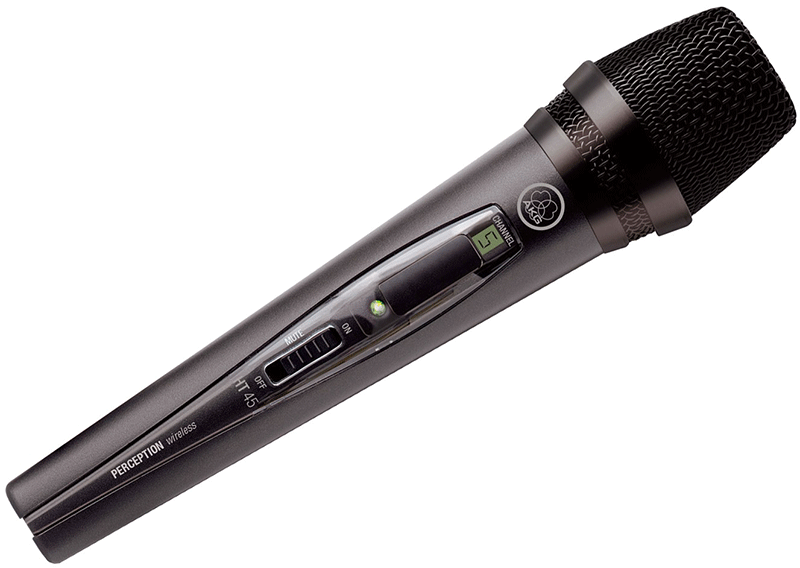

HT45

HIGH-PERFOMANCE WIRELESS HANDHELD TRANSMITER

The HT45 analog high-performance wireless handheld transmitter features a dynamic microphone capsule for demanding vocal performances. The cardioid polar pattern ensures maximum gain before feedback and lets your voice cut through any mix. Its spring-steel wire-mesh front grille protects the transducer from the hardships of on-stage use.

The HT45 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery status indicator shows red before the battery goes dead, allowing the user to fully control his performance time.

Eight hours of operation from a single AA battery
saves money in day-to-day use

Gain control on transmitter
for immediate volume adjustment

Noiseless on/off/mute switch
for easy operation

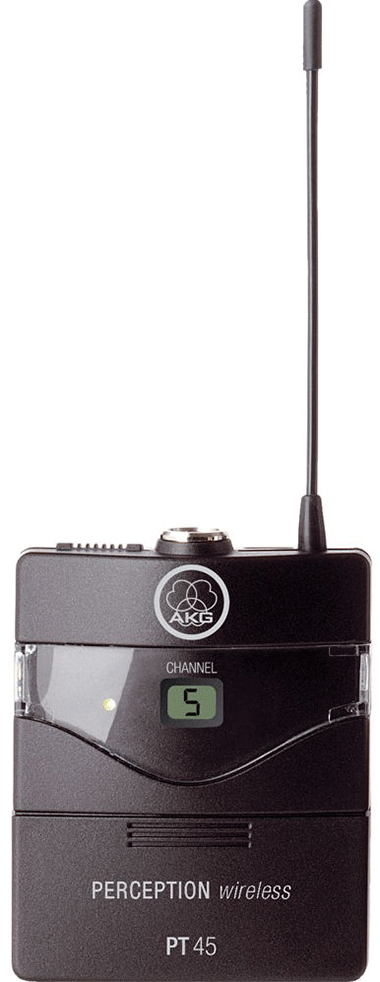

PT45

HIGH-PERFOMANCE WIRELESS BODY-PACK TRANSMITTER

The PT45 is an analog high-performance wireless body-pack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars, basses, instrumental pickups and headsets. It is designed for stress-free work on small stages, in houses of worship and in conference rooms.

The PT45 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery goes dead, allowing the user full control of performance time. The package includes a rugged guitar cable.

Eight hours of operation from a single AA-size battery
saves money in day-today use

Professional three-pin mini XLR connector
compatible with guitar cables, headset and instrument mics

Gain control on transmitter
for immediate volume adjustment

Noiseless on/off/mute switch
for easy operation

Compact and rugged body-pack design
for maximum wearing comfort

TECHNICAL SPECIFICATION

Audio

Audio frequency bandwidth	40 to 20000 Hz
Signal to Noise	105 dB-A
THD at 1 kHz	0.8 Prozent

Miscellaneous

Operating temperature range	-10 to 55 Celsius
Peak deviation	45 kHz

Pocket Transmitter

Nominal deviation	15 kHz kHz
Radio Output Power (min/max)	0 ... 0 mW
Transmitter Synchronization	Manual

Audio Input

Type	Mini XLR
Gender	Female
Contacts	3-pin
Maximum audio level	12 dB
Rated Impedance	1 Ohms

Battery 1

Battery type	LR6 AA alkaline battery
Number of batteries	1
Operating time	8 h

Battery 2

Number of batteries	1
Operating time	8 h

Battery 3

Number of batteries	1
Operating time	14 h

Design

Body	Plastic
Finish	black

Dimensions / Weight

Length	60 mm
Height	75.5 mm
Width	30 mm

Radio

Switching bandwidth	30 MHz
Recommended simultaneous channels	5
Number of selectable frequencies	8 Fixed frequencies
Frequency Selection	Fixed frequency
Wireless channels within device	-
Radio range (Line of sight)	30m
Switchable RF power	no
Modulation	FM
Encryption	No encryption
Pilot Tone	no
