AT THE POINT

For project studios, home recording & stage

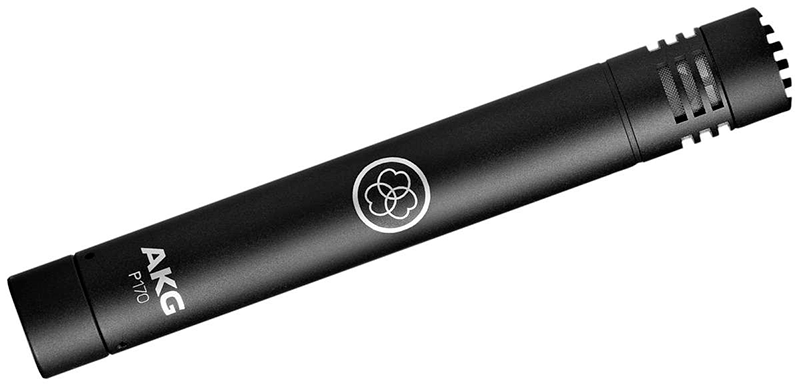

The P170 is a small-diaphragm condenser microphone for recording of overheads, percussions, acoustic guitars and other strings. Its lightweight 1/2-inch true condenser transducer diaphragm delivers outstanding clarity and transient response.
The P170 utilizes the experience of sound engineers from around the world and is considered an affordable alternative to the legendary AKG C451 B.

Rugged all-metal body and robust design
withstands tough day-to-day use

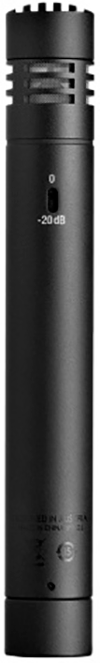

Switchable attenuation pad
for high SPL applications up to 155 dB SPL

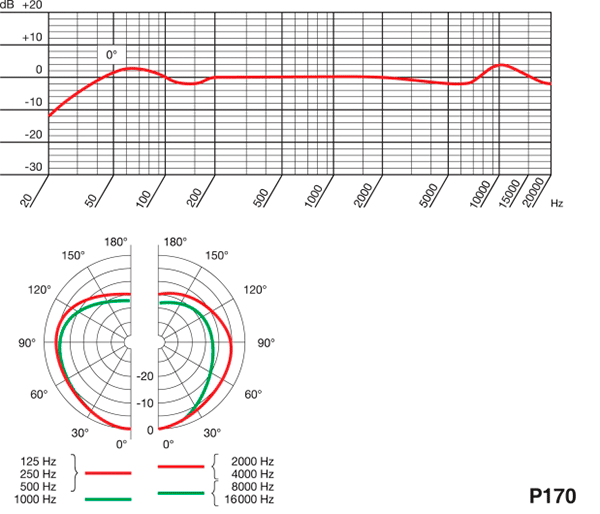

Polar Patterns

AKG P170

TECHNICAL SPECIFICATION

General

Audio frequency bandwidth	20 to 20000 Hz
Equivalent noise level	19 dB-A
Sensitivity	15 mV/Pa
Signal to Noise	75 dB-A
Preattenuation Pad	-20 dB
Electrical impedance	<= 200 Ohms
Recommended load impedance	>=1000 Ohms

Powering Interface

Voltage	44 to 52 V
Current	<= 3 mA

Audio Output

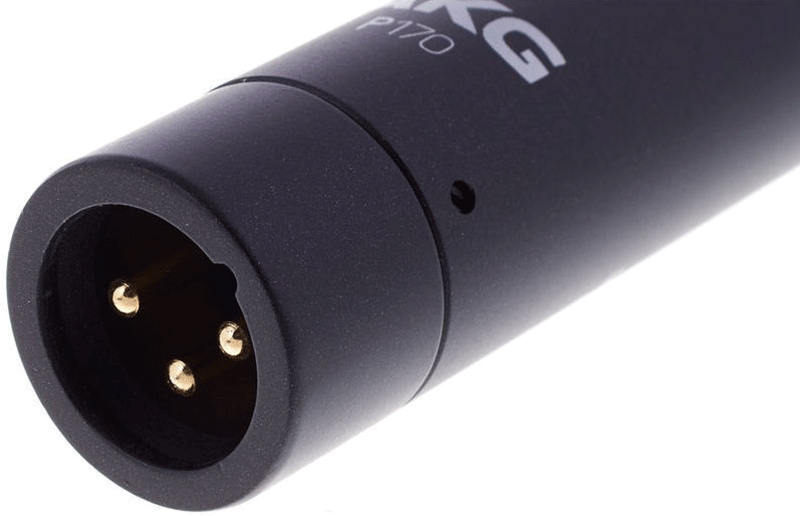

Type	Balanced XLR
Gender	Male
Contacts	3-pin

Dimensions / Weight

Height	160 mm
Diameter	22 mm
Net Weight	130 g
